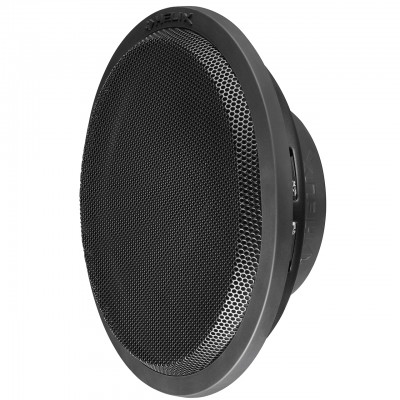

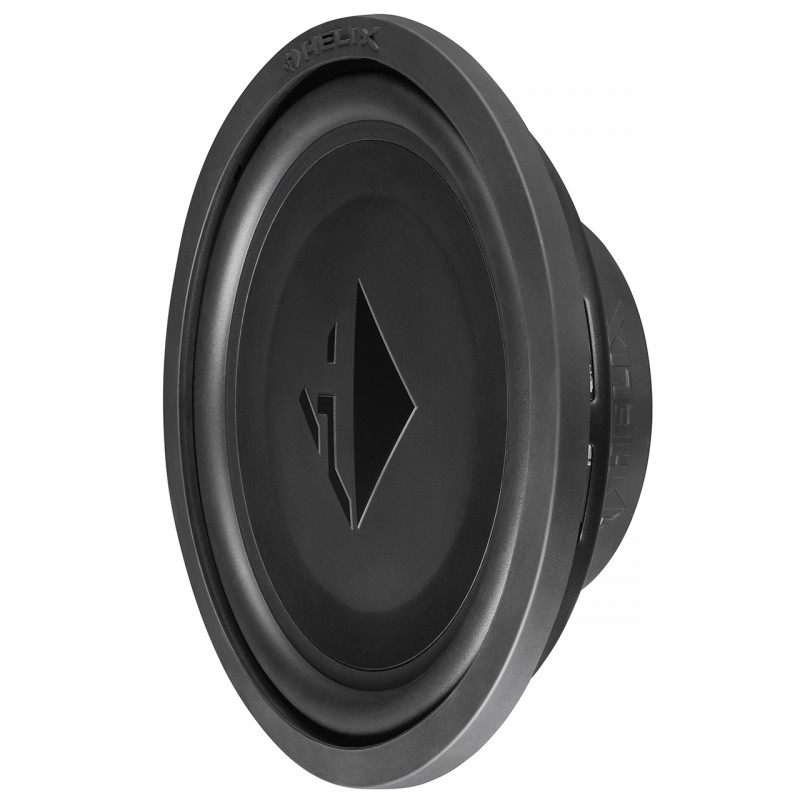

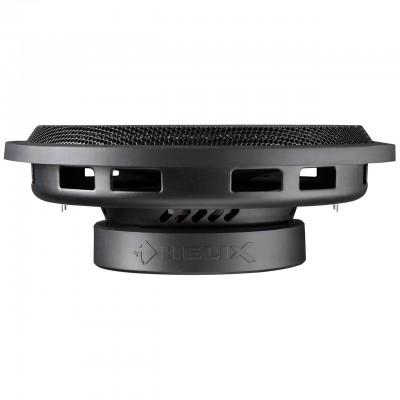

HELIX IK S12 SVC2
Kodas:
0,00 €
Su mokesčiais
SVC2, 2 OHM / 12" 300 MM.
-
Saugumo politika (redaguojama modulyje "Kliento patikinimas")
-
Pristatymo politika (redaguojama modulyje "Kliento patikinimas")
-
Grąžinimo politika (redaguojama modulyje "Kliento patikinimas")
Technical data
Power handling RMS / max. |
P |
300 / 600 Watts |
Impedance |
Z |
1 x 2 Ω |
DC resistance |
Re |
1 x 1.8 Ω |
Resonance frequency |
Fs |
36 Hz |
Mechanical Q factor |
Qms |
5.41 |
Electrical Q factor |
Qes |
0.52 |
Total Q factor |
Qts |
0.48 |
Compliance |
Cms |
95 μm/N |
Equivalent air volume |
Vas |
40 L |
Force factor |
B*I |
17.2 Tm |
Sensitivity |
SPL |
91.0 dB @2.83V / 1m
|
Cone area |
Sd |
523 cm² |
Moving mass |
Mms |
220 g |
Cone material |
|
Sandwich paper cone |
Mechanical resistance |
Rms |
7.9 kg/s |
Voice coil diameter |
ø |
50.8 mm |
Voice coil winding height |
|
24 mm |
Max. linear excursion |
Xmax |
+/- 8.0 mm |
Outer diameter |
ø |
316 mm / 12.44" |
Installation diameter |
ø |
276.8 mm / 10.90" |
Installation depth |
|
95.5 mm / 3.76" |
|
|
|
|
Recommended enclosure volumes |
|
|
Sealed box |
|
|
Net volume |
|
22 L |
Lower limiting frequency (-3dB) |
|
39 Hz |
|
|
|
|
Vented box |
|
|
Net volume |
|
40 L |
Port diameter |
ø |
100 mm / 3.94" |
Port area |
|
78 cm² |
Port length |
|
32 cm / 12.6" |
Port tuning frequency |
Fb |
36 Hz |
Lower limiting frequency (-3dB) |
|
37 Hz |
Specifinė nuoroda
SVC2, 2 OHM / 12" 300 MM.
