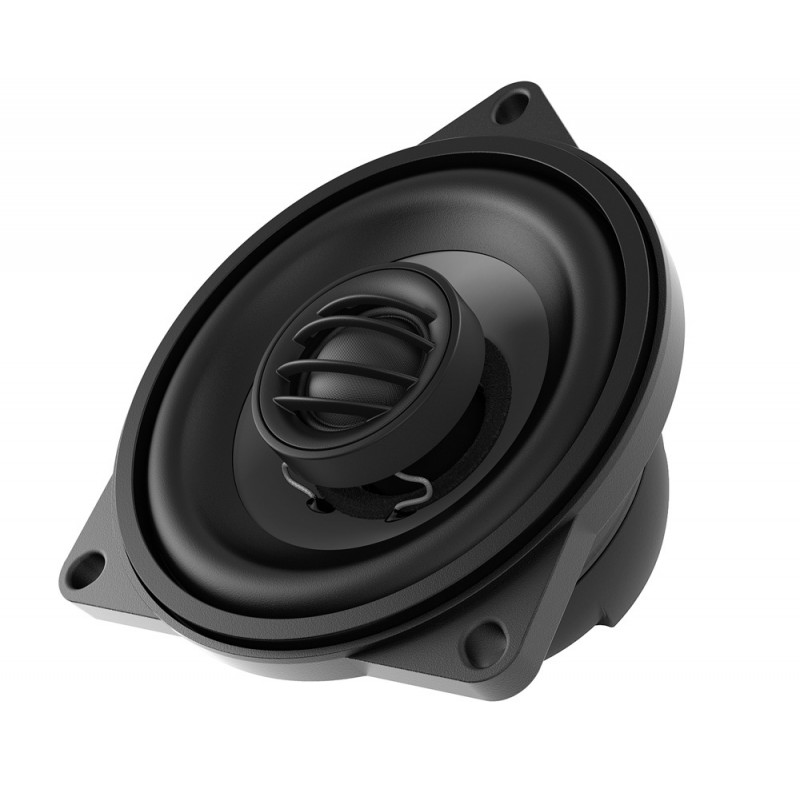

AUDISON APBMW X4M

Technical Specs  :

-------------------------------

. Woofer Size 100 mm

. Impedance 4 Ohm

. Power Handling - Peak 80 W

. Power Handling - Continuous 40 W

. Sensitivity 88 dB

. Frequency Response 100 ÷ 22k

. Voice Coil Diameter 25 mm

. Magnet Size 50 x 29 x 3

. Xmax 0.5 mm

. Technical Specs HF

. Tweeter Size 24 mm

. Voice Coil Diameter 20 mm

. Electric-acoustic Specs

. Re 3.4 Ohm

. Fs 100 Hz

. Mms 5.1 g

. Cms 0.53

. Bl 5

. Qms 7.1

. Qes 0,42

. Qts 0.4

. Vas 1.9 l

. LE 0.32

. General

. Weight 0.4 kg

. Dimensions

. Dimension A 102 mm

. Dimension B 91 mm

. Dimension C 63.5 mm

. Dimension D 44.5 mm
