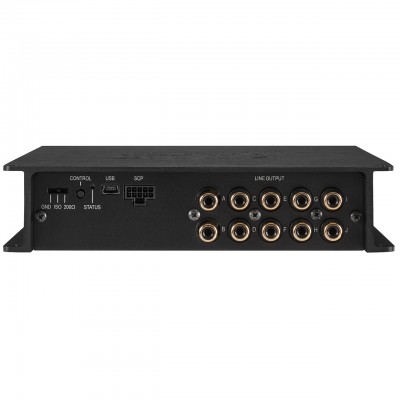

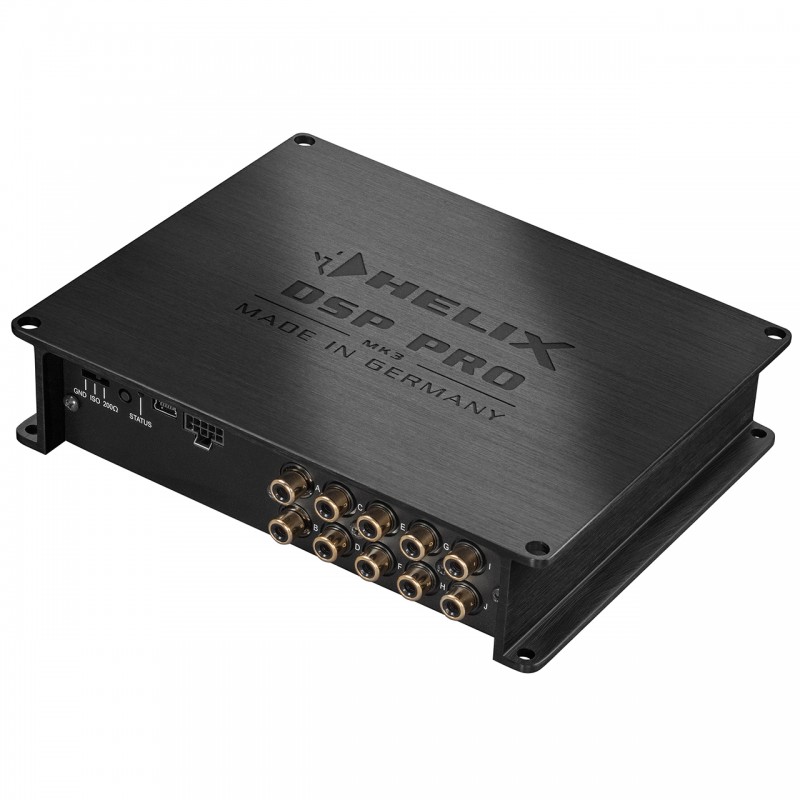

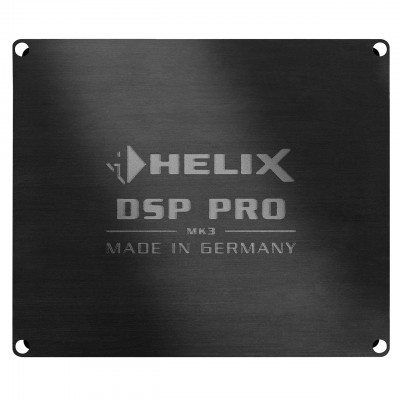

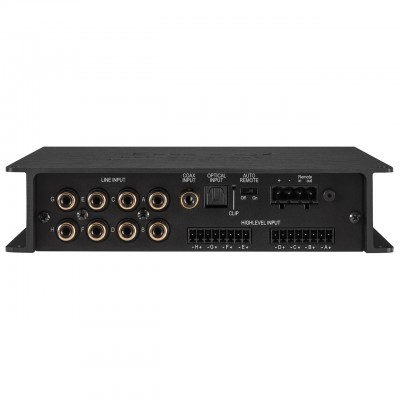

HELIX DSP PRO MK3

Kodas:

0,00 €
Su mokesčiais
8 KANALŲ GARSO PROCESORIUS
  • Saugumo politika (redaguojama modulyje "Kliento patikinimas") Saugumo politika (redaguojama modulyje "Kliento patikinimas")
  • Pristatymo politika (redaguojama modulyje "Kliento patikinimas") Pristatymo politika (redaguojama modulyje "Kliento patikinimas")
  • Grąžinimo politika (redaguojama modulyje "Kliento patikinimas") Grąžinimo politika (redaguojama modulyje "Kliento patikinimas")

Technical data

Inputs
8 x RCA / Cinch
8 x Highlevel speaker input
1 x Optical SPDIF (12 - 96 kHz)
1 x Coax SPDIF (12 - 192 kHz)
1 x Remote In
Input sensitivity
RCA / Cinch 2 / 3 / 4 Volts
Highlevel 4 / 7 / 11 or 12 /
22 / 32 Volts
Outputs
10 x RCA / Cinch
1 x Remote Out
Output voltage
8 Volts
Frequency response
10 Hz - 44,000 Hz
DSP resolution
64 Bit
DSP power
2 x 295 MHz
(2.4 billion MAC operations/second)
Sampling rate
96 kHz
DSP type
2 x Audio signal processor
Signal converters
A/D: AKM Velvet Sound 32 Bit
D/A: AKM Velvet Sound 32 Bit
Signal-to-noise ratio digital input
116 dB (A-weighted)
Signal-to-noise ratio analog input
111 dB (A-weighted)
Total harmonic distortion (THD+N) digital input
< 0.0005 %
Total harmonic distortion (THD+N) analog input
< 0.001 %
IM distortion (IMD) digital input
< 0.002 %
IM distortion (IMD) analog input
< 0.004 %
Crosstalk
> 90 dB
Operating voltage
9.6 - 17 Volts
(max. 5 sec. down to 6 Volts)
Power rating
DC 12 V ⎓ 3 A max.
Current draw
650 mA
Max. remote output current
500 mA
Additional features
HEC slot,
Ground lift switch,
Smart Control Port,
32 Bit CoProcessor,
ADEP.3 circuit,
Auto Remote switch
Dimensions (H x W x D)
40 x 177 x 150 mm /
1.58 x 6.97 x 5.91“
