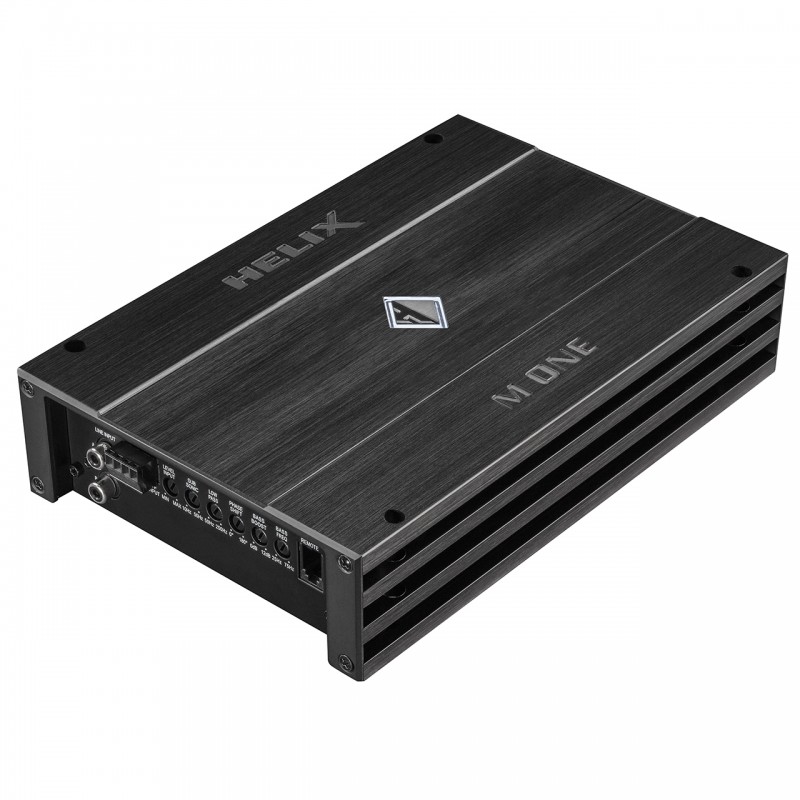

HELIX M ONE X - 24V Edition

Power RMS ≤ 1% THD+N

Normal operation

(One amplifier)

- @ 4 Ohms

1 x 400 Watts

- @ 2 Ohms

1 x 700 Watts

- @ 1 Ohm

1 x 1,030 Watts

- bridged @ 4 Ohms

-

- bridged @ 2 Ohms

-

Max. output power per channel*:

Up to 1,180 Watts RMS @ 1 Ohm

Amplifier technology

Class D

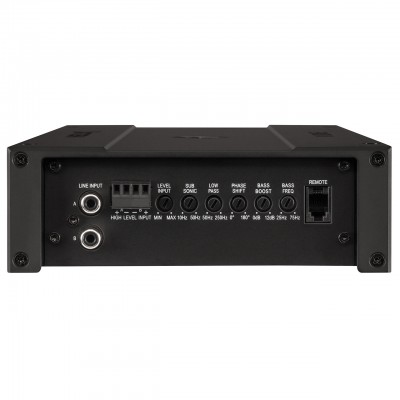

Inputs

2 x RCA / Cinch

2 x Highlevel speaker input

1 x Remote In

1 x Remote control input

Input sensitivity

RCA / Cinch 0.5 - 6 Volts

Highlevel 1.1 - 13 Volts

Input impedance RCA / Cinch

20 kOhms

Input impedance highlevel

9 - 33 Ohms

Outputs

1 x Speaker output

Output voltage RCA / Cinch

-

Signal converter for digital input

-

Frequency response

10 Hz - 250 Hz

Bass boost

0 - 12 dB / 30 - 80 Hz

Highpass

-

Lowpass

50 Hz - 250 Hz adjustable

Bandpass

10 Hz - 250 Hz adjustable

Subsonic

10 Hz - 50 Hz adjustable

Phase

0 - 180° adjustable

Slope high- / lowpass

-

Slope subsonic / lowpass

12 / 24 dB/Oct.

Signal-to-noise ratio digital input

-

Signal-to-noise ratio analog input

95 dB (A-weighted)

Distortion (THD)

0.20 %

Damping factor

150

Operating voltage

18 - 36 Volts (max. 5 sec. down to 12 Volts)

Idle current

400 mA

Operating temperature range

-40° C to +70° C

Fuse

3 x 20 A Maxi-fuse (APX)

Power rating

DC 24 V ⎓ 53 A max.

Additional features

Active, adjustable crossover, bass boost, phase shift,

Start-Stop capability,

highlevel input with automatic turn on function and

Advanced Diagnostics Error Protection (ADEP),

bass volume cable remote control

Dimensions (H x W x D)

50 x 320 x 154 mm /

2.00 x 12.60 x 6.06”
