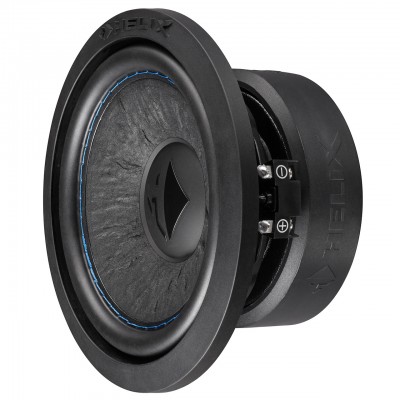

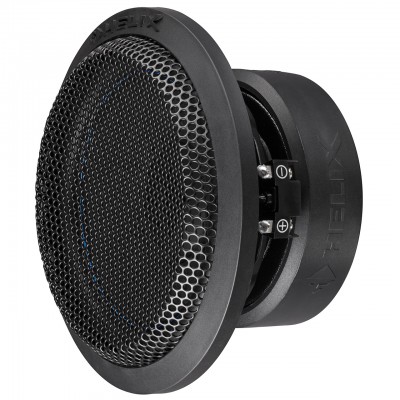

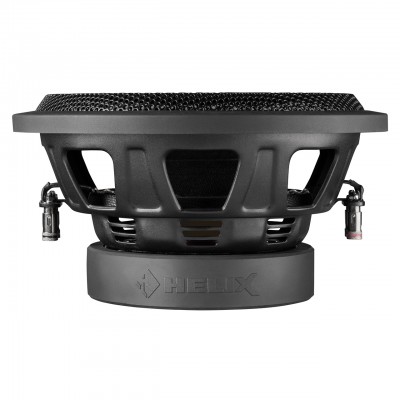

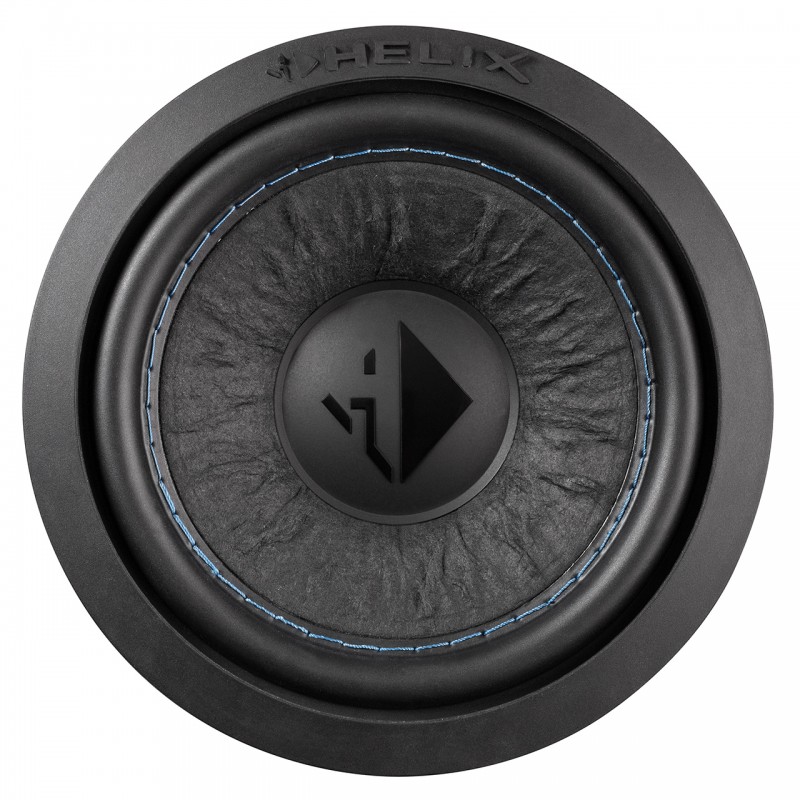

HELIX IK W6 DVC2
Kodas:
0,00 €
Su mokesčiais
DVC2, 2 X 2 OHM / 6,5" 165 MM.
-
Saugumo politika (redaguojama modulyje "Kliento patikinimas")
-
Pristatymo politika (redaguojama modulyje "Kliento patikinimas")
-
Grąžinimo politika (redaguojama modulyje "Kliento patikinimas")
Technical data
|
|
|
IK W6-DVC2 – 2 x 2 Ohms |
Power handling RMS / Max. |
P |
150 / 300 Watt |
Impedance |
Z |
2 x 2 Ω |
DC resistance |
Re |
2 x 2.0 Ω |
Resonance frequency |
Fs |
50 Hz |
Mechanical Q factor |
Qms |
3.92 |
Electrical Q factor |
Qes |
0.32 |
Total Q factor |
Qts |
0.30 |
Compliance |
Cms |
261 μm/N |
Equivalent air volume |
Vas |
5.3 L |
Force factor |
B*I |
12.3 Tm |
Sensitivity |
SPL |
89.0 dB @2.83V / 1m
|
Cone area |
Sd |
123 cm² |
Moving mass |
Mms |
37 g |
Cone material |
|
Hand-scooped paper cone |
Mechanical resistance |
Rms |
3.04 kg/s |
Voice coil diameter |
ø |
37 mm |
Voice coil winding height |
|
18 mm |
Max. linear excursion |
Xmax |
+/- 6.0 mm |
Outer diameter |
ø |
164.2 mm / 6.46" |
Installation diameter |
ø |
132.5 mm / 5.22" |
Installation depth |
|
74.3 mm / 2.93" |
|
|
|
|
Recommended enclosure |
|
|
Vented box |
|
|
Net volume |
|
7 L |
Port diameter |
ø |
50 mm |
Port area |
|
20 cm² |
Port length |
|
34 cm (angled port) |
Port tuning frequency |
Fb |
45 Hz |
Lower limiting frequency (-3dB) |
|
43 Hz |
